Mini 1080P AHD Sideview Outdoor Car Surveillance Camera with DC12/24V Metal Housing

Product Categories
Shenzhen Vanwin Tracking Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Mini 1080P AHD Sideview Outdoor Car Surveillance Camera with DC12/24V Metal Housing

  • 1
  • 2
  • 3

Brand Name : Vanwin Tracking

Model Number : VW361b

Certification : CE/FCC/RoHS

Place of Origin : Shenzhen, China

MOQ : 5pcs

Price : negotiated

Payment Terms : Western Union, T/T, Paypal

Supply Ability : 5,000pcs per month , Mini Outdoor Waterproof AHD Camera Video Surveillance Bus Mount with IR Lights

Delivery Time : 2-3 days for samples, 5-10 days for large orders

Packaging Details : Neutral carton box package by default

Product name : AHD 1080P Vandalproof metal-cased Bus Surveillance Camera

Image sensor : Analog / AHD

TV system : PAL or NTSC

Power : DC12 or 24V

Night Vision : Yes

Lens Angle : 130 degree wide angle

Application : bus truck

Working in Water : IP69K

Installation : Easy installation , only need one screw to fix it, super mini size

Material : Metal

Color : black

Contact Now

Mini Easy install 1080P AHD sideview outdoor car surveillance camera







Specification:



Technical Parameters
Image sensor 1/3" CMOS
Horizontal resolution 800TV Line
TV system PAL/NTSC
Effective pixel 960(H)*576(V)
Minimum illumination Color 0.1Lux @ (AGC ON),0 Lux with IR
S/N ratio ≥52dB
Day/Night mode Color to Blackwhite switch automatically
Auto Gain Control AUTO
Backlight compensation AUTO
White balance AUTO
Scanning mode Interlaced scanning
Electronic shutter AUTO/1/50(1/60)-1(100,000Sec)
Video output CVBS 1.0V p-p Composite Output 75ohm
Viewing angle 120°/150°/170°/other
IR leds Qty 5pcs LEDs
IR distance ≤3 meters
Waterproof grade IP69K
Operating temp. -20°C~+70°C
Power supply DC12V±10%
Power consumption ≤2W

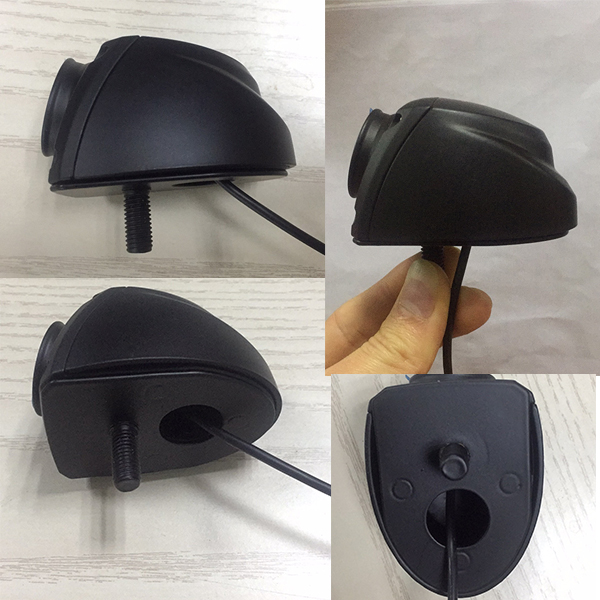

Product Pictures

Mini 1080P AHD Sideview Outdoor Car Surveillance Camera with DC12/24V Metal HousingMini 1080P AHD Sideview Outdoor Car Surveillance Camera with DC12/24V Metal Housing







Installation Pictures

Mini 1080P AHD Sideview Outdoor Car Surveillance Camera with DC12/24V Metal Housing
