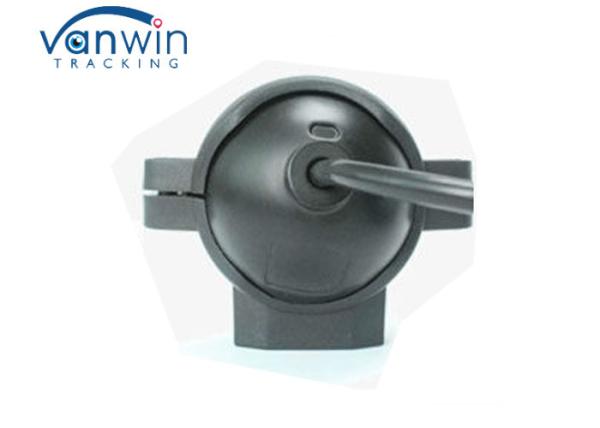

Name: Outside Mobile Bus Surveillance Camera High Resolution 700TVL
Brand: Vanwin Tracking
Price: 1 USD

Brand Name : Vanwin Tracking

Model Number : VW-399

Certification : CE/FCC/RoHS

Place of Origin : Shenzhen, China

MOQ : 5pcs

Price : negotiated

Payment Terms : Western Union, T/T, Paypal

Supply Ability : 5,000pcs per month

Delivery Time : 2-3 days for samples, 5-10 days for large orders

Packaging Details : Neutral carton box package by default

Type : Car camera

Image sensor : SONY CCD 600/700/800TVL

TV system : PAL or NTSC

Connector : 4 pin aviation,square, BNC connector

Warranty : 12 months

Resolution : 600TVL/700TVL

Application : for truck or bus

Material : Metal housing

Contact Now

Outside Mobile Bus Surveillance Camera High Resolution 700TVL

Technical parameters:

Image Sensor	1/3" Sony Color CCD
Horizontal Resolution	700TV lines
TV System	PAL/NTSC
Effective Pixels	PAL:976(H) x 582(V) NTSC: 976(H) x 494(V)
Minimum Illumination	Color 0.001Lux;IR ON 0 Lux
S/N Ratio	≥60dB(AGC OFF)
DAY&NIGHT MODE	COLOR MODE/AUTO MODE/B&W MODE
Auto Gain Control	AUTO/MANUAL,8 Value settings
Back Light Comp	Back light compensation, high light suppression
White Balance	Multi- mode selection
Noise Reduction	3D
WDR	High/Middle/Low
Lens	2.8MM
Electronic shutter	AUTO/1/50(1/60)-1(100,000Sec)
Video Out	1.0V p-p 75, BNC connector
Control mode	OSD manual,support 8 languages
Synchronization System	Internal
Scanning System	2:1 Interlaced
PRIVACY	8 areas,freely set up position,size and 8 colors
Motion Detection	Grid tracking,4 areas,freely set up positions and size
IR LEDs	10PCS
IR distance	5~10M
Waterproof level	IP66
Working temperature	-20°C~+70°C
Power supply	DC12V±10%
Power consumption	≤3W

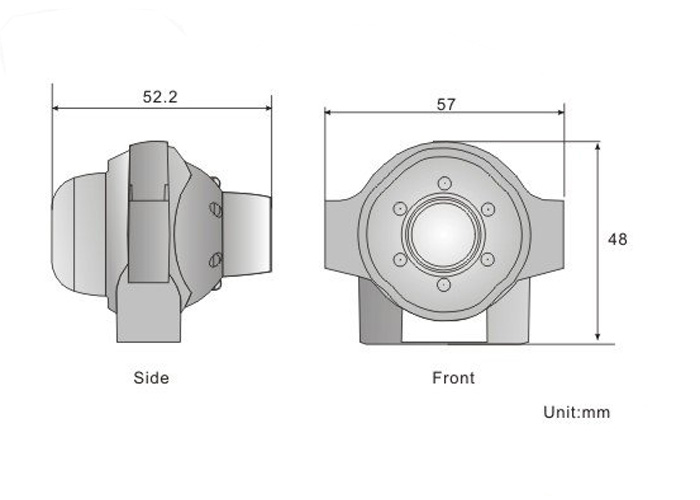

Dimension	725058mm

Application:

Outside car camera(inside vehicle installation or outside vehicle installation)
Used in bus, taxi, truck, school bus, goods van, police car, escort car, tanker truck, etc.special for truck.

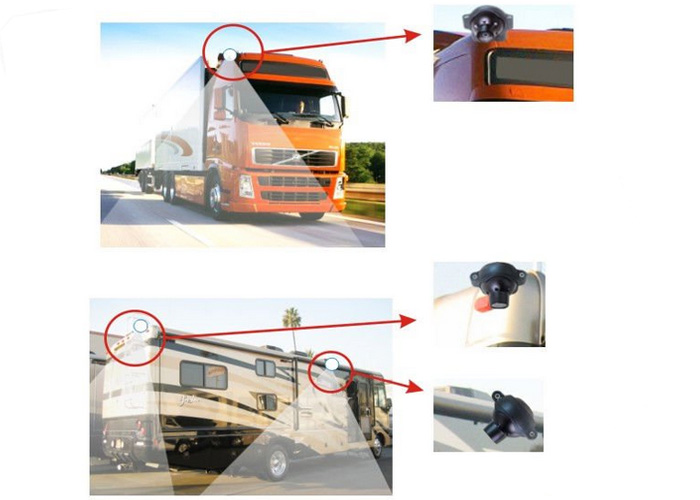

Installation picture:
