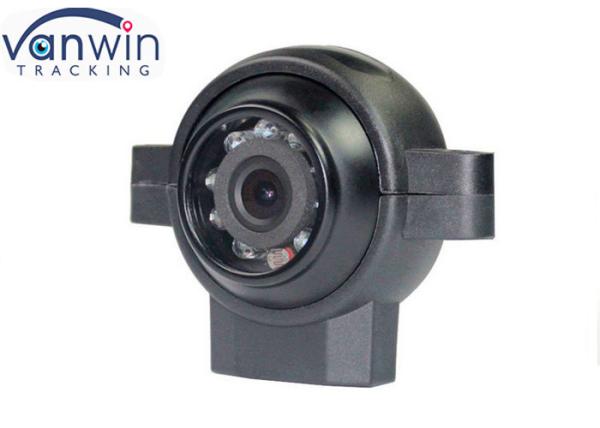

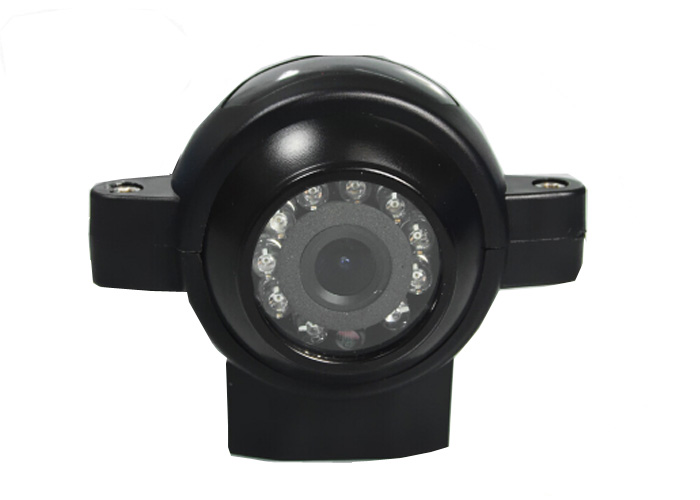

Waterpoof Bus Surveillance Camera

  • 1
  • 2
  • 3

Brand Name : Vanwin Tracking

Model Number : VW-399

Certification : CE/FCC/RoHS

Place of Origin : Shenzhen, China

MOQ : 5pcs

Price : negotiated

Payment Terms : Western Union, T/T, Paypal

Supply Ability : 5,000pcs per month , heavy duty vehicle DVR camera

Delivery Time : 2-3 days for samples, 5-10 days for large orders

Packaging Details : Neutral carton box package by default

Product name : Heavy duty vehicle DVR camera

Sensor : 1/3 Sharp CCD car camera

TV system : PAL or NTSC

Voltage : DC12

IR LED : 10PCS

Waterproof : IP67

Resolution : 600TVL/700TVL/800TVL

Application : For Trailer / Bus / Truck / Heavy Duty

Body size : 7*5*5.8CM

Contact Now

HD 1/3 Sony CCD 800TVL Heavy Duty Vehicle DVR Camera Waterpoof IP67 with CE FCC



Main Features:


  1. Bus/Truck sideview Camera
  2. High resolution 800TVL/700TVL/600TVL for option
  3. Waterproof, IP67, 10 IR leds.
  4. Vandal-proof housing.


Technical parameters:






Image Sensor 1/3" Sony Color CCD
Horizontal Resolution 700TV lines
TV System PAL/NTSC
Effective Pixels PAL:976(H) x 582(V)                                                       NTSC: 976(H) x 494(V)
Minimum Illumination Color 0.001Lux;IR ON 0 Lux
S/N Ratio ≥60dB(AGC OFF)
DAY&NIGHT MODE  COLOR MODE/AUTO MODE/B&W MODE
Auto Gain Control  AUTO/MANUAL,8 Value settings
Back Light Comp Back light compensation, high light suppression
White Balance Multi- mode selection
Noise Reduction 3D
WDR High/Middle/Low
Lens 2.8MM
Electronic shutter AUTO/1/50(1/60)-1(100,000Sec)
Video Out 1.0V p-p 75, BNC connector
Control mode OSD manual,support 8 languages
Synchronization System Internal
Scanning System 2:1 Interlaced
PRIVACY 8 areas,freely set up position,size and 8 colors
Motion Detection Grid tracking,4 areas,freely set up positions and size
IR LEDs 10PCS
IR distance 5~10M
Waterproof level IP66
Working temperature -20°C~+70°C
Power supply DC12V±10%
Power consumption ≤3W
Dimension 72*50*58mm





Quality Assurance



  1. Aging test
  2. Waterproof test
  3. High-and-low temperature test





Application

  • Outside car camera(inside vehicle installation or outside vehicle installation)
  • Used in bus, taxi, truck, school bus, goods van, police car, escort car, tanker truck, etc.special for truck.




Waterpoof Bus Surveillance Camera


How to install?


Waterpoof Bus Surveillance Camera

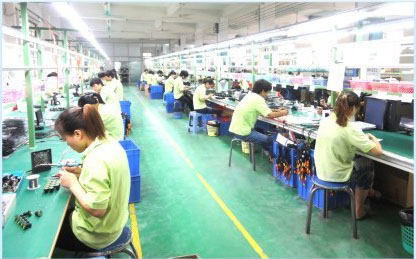

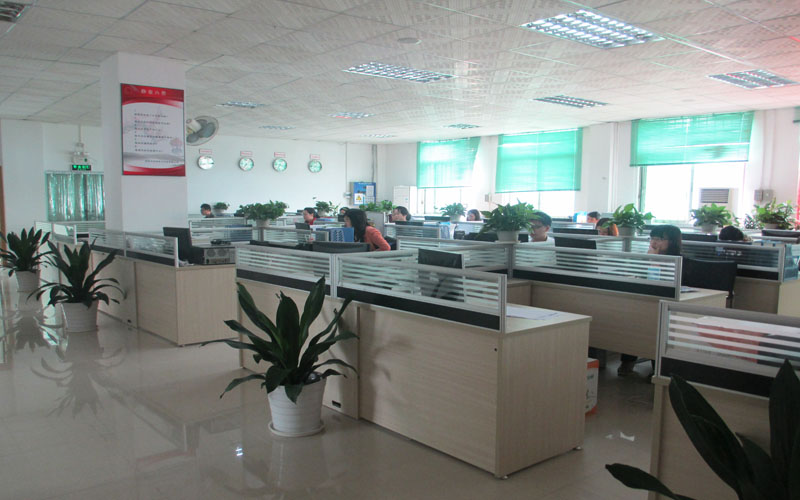

About US



Waterpoof Bus Surveillance Camera

Waterpoof Bus Surveillance Camera
