4G GPS Automatic Bus People Counter Systems For bus passenger flowing statistics

Brand Name : Vanwin Tracking

Model Number : VW9208C

Certification : CE ROHS

Place of Origin : China

MOQ : 1PC

Price : USD100-USD1000

Payment Terms : L/C, T/T, Western Union,paypal

Supply Ability : 1000PCS/month

Delivery Time : 3-15days upon payment

Packaging Details : Neutral package, carton box

Material : Aluminum alloy

System : Linux

Product name : 4G GPS automatic passenger counting systems

Functions : Counting,4G live video streaming, GPS tracking&locating, reports for fuel level aram etc

Storage : HDD +SD card, max 2TB+ 256GB

Video inputs : 4CH 1080P AHD video input+4CH counting video inputs

Snapshot : Support

Signal trigger : GPS speed trigger /Door open/close trigger

Extensive function : WIFI routing/wifi/fuel level/ temperature monitoring/ overspeed alarm etc

Contact Now

4G GPS Automatic Bus People Counter Systems For Public Transport



4G GPS Bus Passenger flow statistics tool video counting sensor

Product Introduction:
This Passenger Counter System is designed for real-time counting of the passengers board a bus at doors. The system is capable of working with 1,2,3 door buses. It will provide accurate count of total passengers and monitor the process on a real time basis. It has an added advantage of monitoring vehicle speed as well as tracking position via GPS.

Product Parameter

Item Description
OS Linux3.18
Operating PC client, Remote controller
Functions Summary Preview, recording, playback,passenger-counting ,network transmission, positioning, AI analysis, multiple sensor data acquisition.
Video and Preview Video Input, Output,Signal standard AHD input:8ch 1080p/15fps,8ch 720p/30fps,8ch D1/30fps,4ch 1080p/30fps. IPC input:1ch default, externally expandable 1-4ch,support POE; Output: 1ch CVBS default, VGA optional(1024x768) Signal standard:1.0Vp-p, 75Ω, NTSC/PAL optional
  OSD Character superposition function, information superposition of time and date, device ID ,passemger-counting information and GPS, alarm,etc.
  Video Compression Format Compression coding. Applying H264/H.265 hi-performance processor.
  Image quality Code stream, frame rate optional
  Preview 1/4/6/8/9 channel preview
  Resolution

AHD: 1080P:30fps/1M/2M/4M/6M 720P: 30fps/1M/2M/4M/6M
D1:30fps/512K/1M/2M
IPC: 1080P: 30fps/1M/2M/4M/6M 720P: 30fps/1M/2M/4M/6M
Audio Audio Input, Output 4ch analog audio input, 1ch mic input; 2ch audio output. 2.0Vp-p, 4.7kΩ
  Compression Format G.711A, G.726
Recording Storage Medium Supporting one 2.5” SATA hard drive and one SD card
  Video Strategies Recording at start up by default, supporting timed recording, recording triggered by alarm and event, as well as manual recording
  Alarm pre-recording 0-60min
  Alarm recording delay 0-30min
  Playback channel Support local 1/4/6/8 channel playback
  Browse mode Time, channel, event.
Communication Ports RS232, RS485
ADAS Built-in (Optional)
Wireless Transmission

3/4G/5G wireless transmission module, EVDO/TD-SCDMA/WCDMA/TDD-LTE/FDD-LTE ect.
Wi-Fi module, 802.11b/g/n,2.4G/5.8G optional. Ethernet: Network aviation head(100M)
Position GPS/BD: Positioning, speed detection, time synchronization
Power Supply and Power Consumption Power Supply 1ACC on/off
  Input Voltage DC:+8V ~ +36V
  Output Voltage +12V@1A; +5V@1A
  Power Consumption Max 25W consumption, about 0W in standby mode
Operating Environment Temperature preheating: -20℃ ~ +70℃
  Humidity 8% to 90%
Dimensions 324.6x238x116 mm.
Weight Net: 2KG

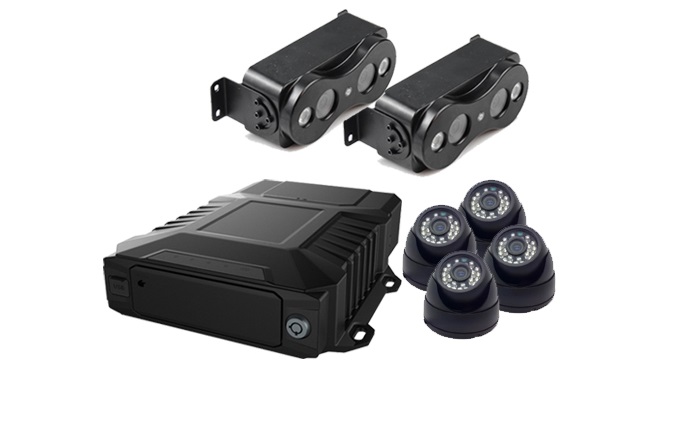

Product photos:
4G GPS Automatic Bus People Counter Systems For bus passenger flowing statistics4G GPS Automatic Bus People Counter Systems For bus passenger flowing statistics4G GPS Automatic Bus People Counter Systems For bus passenger flowing statistics

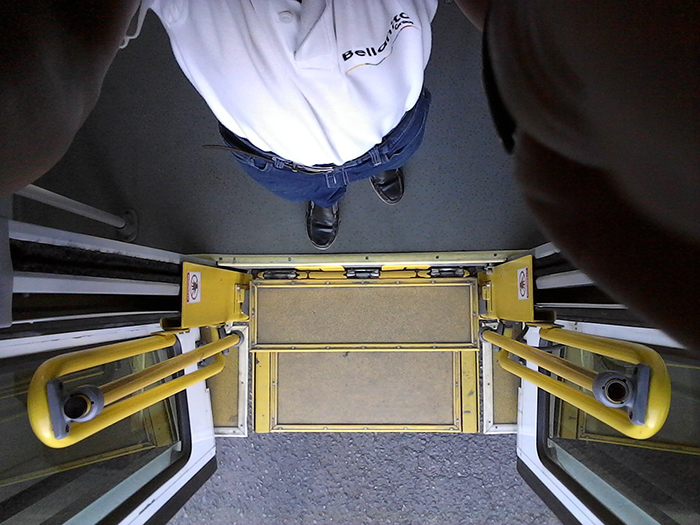

Application
4G GPS Automatic Bus People Counter Systems For bus passenger flowing statistics4G GPS Automatic Bus People Counter Systems For bus passenger flowing statistics
4G GPS Automatic Bus People Counter Systems For bus passenger flowing statistics
